Filtri za puhala

Filtri

Tip

Kapacitet

m3 / sat

DN  A D H S L M

Filtracijski

ulošci

Tip Filter Dimenzije (mm)
a d h
FA.4020 85 3/4” 150 27 105 23 130 15 K.2454
FA.4020 108 55 83
FA.4030 85 1” 150 33 105 23 130 15

K.2454

FA.4030 108 55 83
FA.4040 85 1 ¼“ 150 42 105 23 200 15 K.2454
FA.4040 108 55 83
FA.4050 250 1 ½“ 180 48 155 23 200 15 K.2455 FA.4050 147 80 135
FA.4060 400 2” 230 60 155 23 200 15 K.2456 FA.4060 176 80 135
FA.4070 700 3” 280 89 180 35 200 15 K.2457 FA.4070 225 100 150
FA.4080 1400 4” 410 114 330 35 200 15 K.2458 FA.4080 300 215 300
FA.4090 2800 5” 410 - 330 - - - K.2458 FA.4090 300 215 300



U svakom slučaju odaberite zračni Filtar čiji je protok veći od usisne snage puhala.
Dimenzije priključka filtra i puhala mogu biti različite.

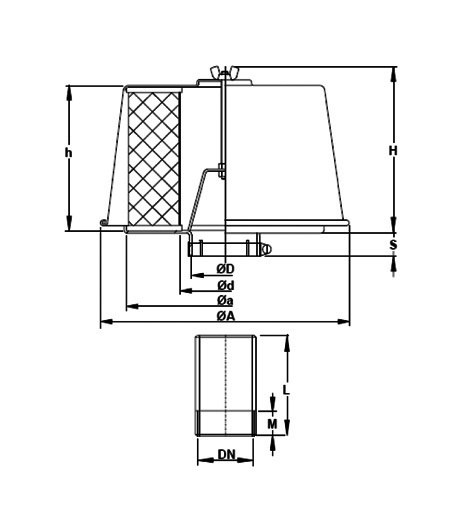

filter_nakres_521_01

Ako ste zainteresirani za izradu ponude cijene, popunite, molim, naš obrazac potražnje.
